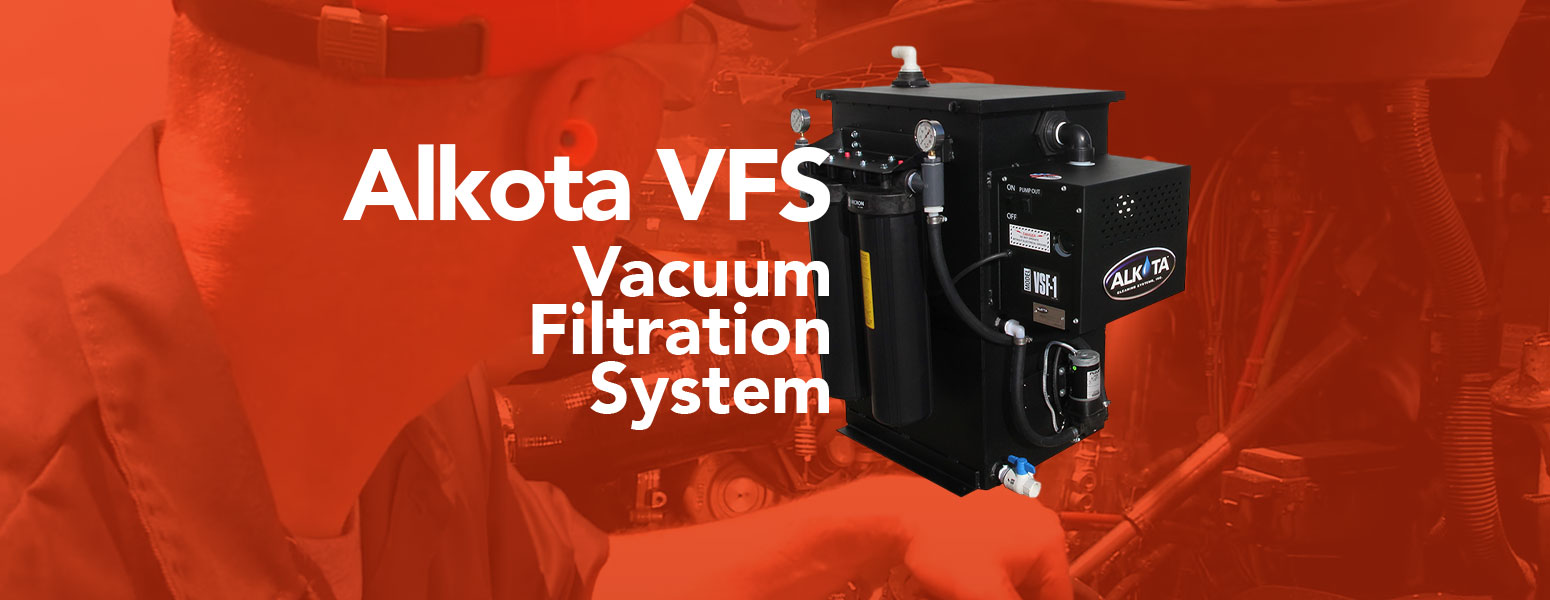

Protecting the environment from wash water runoff and complying with governmental regulations is simple, economical and effective with the Alkota Vacuum Filtration System (VFS). The VFS is designed to be used as a portable or stationary treatment system that guarantees results with ease of service while minimizing disposal cost. This automatic and easy to use zero or controlled discharge system has been uniquely designed to keep businesses operating without expensive filter cost, down time and additional manpower. The VFS can be equipped with a portable wheel kit for specific sight portability or with ease fit into pick-up trucks, vans or onto trailers. *For increased pick-up capacity operate with an Alkota Gasoline powered vacuum system.
APPLICATIONS FOR VFS – COMPLIMENTING ALKOTA POWER WASHERS
The complete process utilized in the VFS is the first of its kind and the manner in which it operates is unique and proprietary to Alkota.
The wash water is vacuumed through the pre-filtered 14″ round 4-mesh multi-tier suction head or a surface cleaner. The waste stream then enters the Phase I filtration chamber that contains three 100-micron screen filters and eight polymer impregnated micro-fiber filters.
This process removes most solids and 99.9% of free oil and petroleum related products. There is no time consuming and expensive bag filters or baskets to clean.
The VFS filtration continues with a Phase II Perking® filtration process, trapping more fines solids with three 120 mesh screens that never need to be replaced. Finally the effluent enters the final Phase III filtration process which is pressurized through high density string wound polishing filters of 50 and 20 microns before going to discharge or re use. The polishing fiters are monitored by pressure differential gauges, making it easy to identify when filters need cleaning or replacement.
Alkota VFS Advantages
- Wheel kit with hose rack
- 50 HTZ voltage
